Dr. Pulley Clutch Thrust Roller 1 stck (420229999/417224081)

Dr. Pulley Clutch Thrust Roller 1 stck (420229999/417224081)


Aktionspreis
18,90 + versand- und Zahlungskosten
Angebot gültig bis
Normaler Preis 19,90 €
MwSt. im Preis enthalten 25.5 %


Anzahl
stck


Auf Lager
Salo5 stck sofort
Salo Fahrzeuge Lager0 stck
Im Onlineshop erhältlich5 stck sofort

Bestellungscode
DOW08131503
Verfügbarkeit
Sofort

Verfügbarkeit auf Lager


Artikelbeschreibung

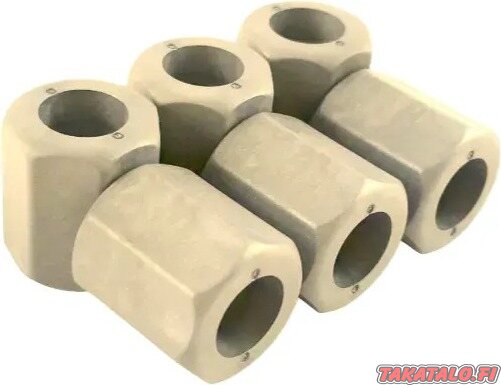

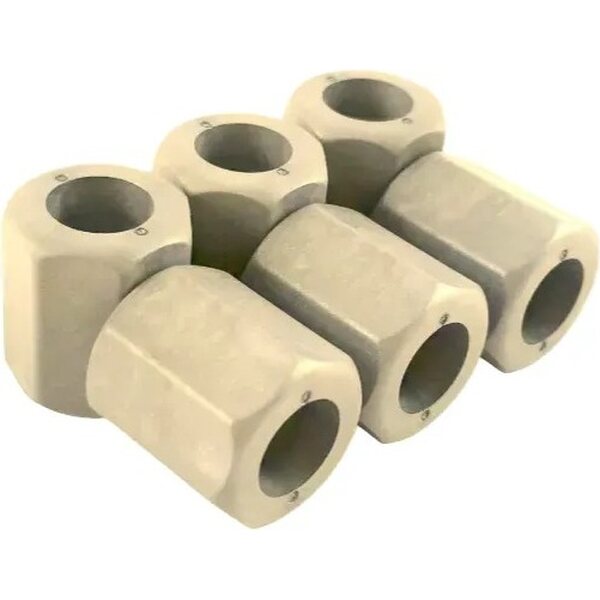

Dr.Pulley DOW08131503 is a variator (clutch) pressure rollers that replaces original part numbers 420229999 (Can-Am) and 417224081 (Ski-Doo).

The component functions like a bushing, dampening noise, smoothing operation, and protecting major parts from wear.

The specially shaped, seven-sided, and curved surface conforms to the RAMP surface over a larger area, reducing surface pressure and extending service life.

Made from a self-lubricating composite material. It withstands high temperatures and is self-lubricating. Offers a longer service life than the standard part and results in smoother variator operation.

Features

  • Self-lubricating composite material – requires no separate lubrication
  • The specially shaped, curved surface reduces surface pressure and extends service life.
  • Reduces noise and protects key variator components from wear.
  • Withstands heat up to 220°C

Technical specifications

  • Manufacturer: Dr.Pulley
  • Product code / MPN: DOW08131503(6)
  • Replaces part numbers: Can-Am 420229999, Ski-Doo 417224081
  • Outer diameter: 13.56 mm
  • Inner diameter: 8.14 mm
  • Height: 15.84 mm
  • Contents of delivery: 1 roller (we recommend to change all rollers at same time)

Compatibility

Brand Model Model years
Can-Am Commander / Commander MAX 1000R EFI (DPS, XT, XTP, XMR) 2021–2023
Can-Am Defender HD10 / HD10 XMR / Max HD10 XMR 2018–2023
Can-Am Maverick Sport / Sport Max 1000(R) (BASE, DPS, XMR, XRC, XXC) 2019–2022
Can-Am Maverick Trail 1000 (BASE, DPS, T-Regulation, EFI) 2018–2023
Can-Am Maverick Turbo / Turbo R / Turbo RR (STD, DS, XDS, XMR, XRC, XRS) 2019–2022
Can-Am Maverick X3 / X3 MAX (Turbo, Turbo R, Turbo RR versions) 2017–2018
Can-Am Ryker (STD, S, Rally Edition) 600/900 ACE 2019–2022
Can-Am Traxter HD10 XMR / XMR CE 2018–2023
Ski-Doo Expedition 900/1200 (Sport ACE, LE, SE 4-TEC) 2016–2019
Ski-Doo Grand Touring 900/1200 (LE, SE, ACE, 4-TEC) 2016–2018
Ski-Doo MXZ 900/1200 (Blizzard, TNT, X, ACE, 4-TEC) 2016–2018
Ski-Doo Renegade 900/1200 (Adrenaline, Enduro, X, ACE, 4-TEC) 2016–2018

Note: The same model name may vary depending on the region and year of manufacture, so please verify compatibility using your vehicle's specific details before ordering.

FAQ

Does the roller require separate lubrication?

No – the material is self-lubricating, so additional lubrication is not necessary.


Gewicht
0,1 kg(Beinhaltet das Gewicht die mögliche Verkaufsverpackung)
